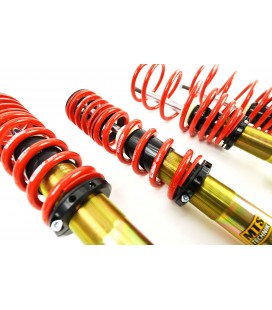

Volkswagen Passat B7 Kombi 2010-2015 MTS Coilovers MTSGWVW96 Street

MTSGWVW96

New product

769,00 €

Delivery time: 10-15d.

- +

Data sheet

Make	Volkswagen
Model	Passat B7 Kombi
Type	365
Year	2010-2015
Engine	1.4TSI / 1.8TSI / 2.0TSI / 1.6TDI / 2.0TDI
TÜV	No
Max. axle load FA	1100 - 1180 kg
Max. axle load RA	-1230 kg
Lowering FA	35 - 70 mm
Lowering RA	35 - 60 mm
Series	Street

More info

Product Notes:
3 - Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
7 - If the vehicle is equipped with the AMR System (Audi Magnetic Ride) - the system has to be deactivated. Suitable drivers are available only on request!, 21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
25 - In some cases it might be necessary to dismount the rear adjustment to achieve the maximum lowering.
35 - Rear thread adjustment block is mounted on the top.
