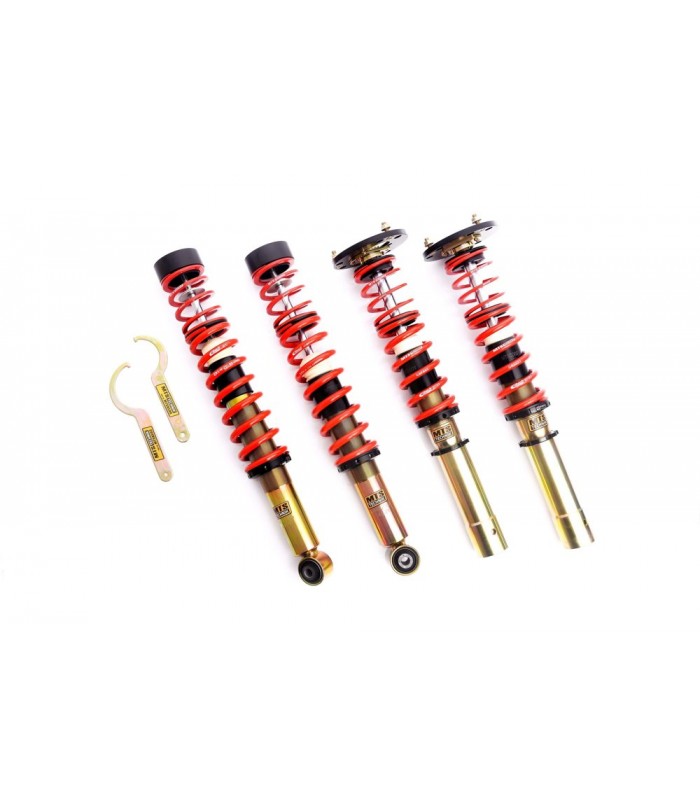

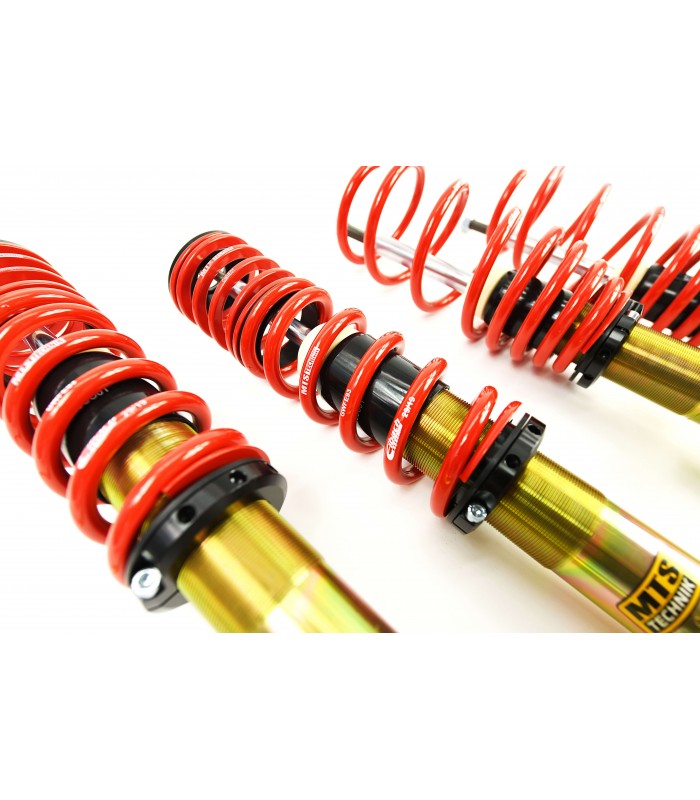

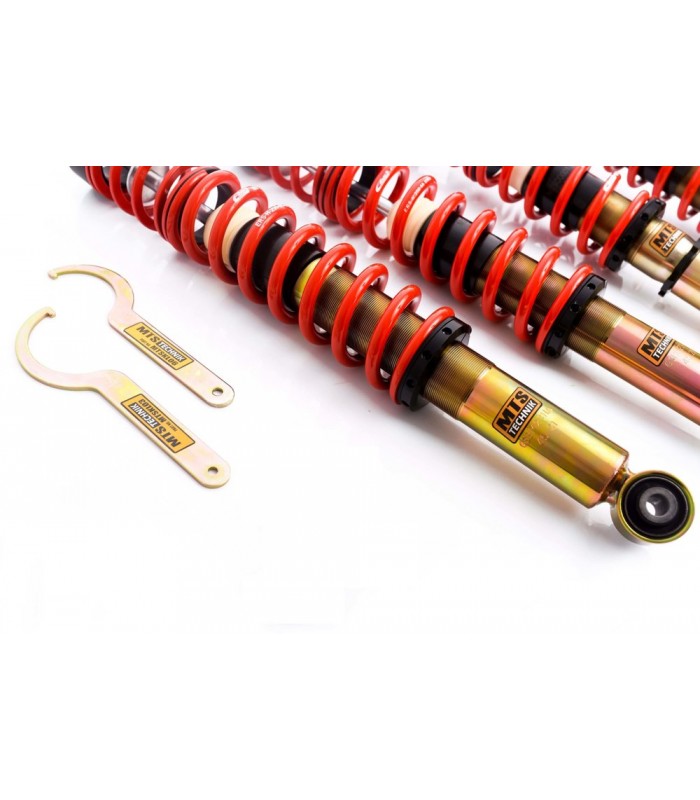

Coilover Kit MTS Technik Stance BMW 6 (E24) 10/75 - 04/82

Many years of experience with coilover suspensions was acquired not only by theory but also by practice. MTS Technik sets are designed by people who use them. The result is a culture of permanent, larger or smaller improvements that are always implemented with the user's needs in mind.

More details

MTSGWBM42-S

New product

949,00 €

Delivery time: 10-15d.

- +

Data sheet

Make	BMW
Model	6 (E24)
Type	E24
Year	10/75 - 04/82
Engine	633 CSi
TÜV	no
Max. axle load FA	-980 kg
Max. axle load RA	-1000 kg
Lowering FA	25 - 110 mm
Lowering RA	25 - 90 mm
Series	Stance
Adjustment+ FA *	+

More info

Product Notes:
2 - Front and rear axle height adjustable (threaded shock absorber housing).
21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
26 - Independent height adjustment at the lower brackets on the front dampers.

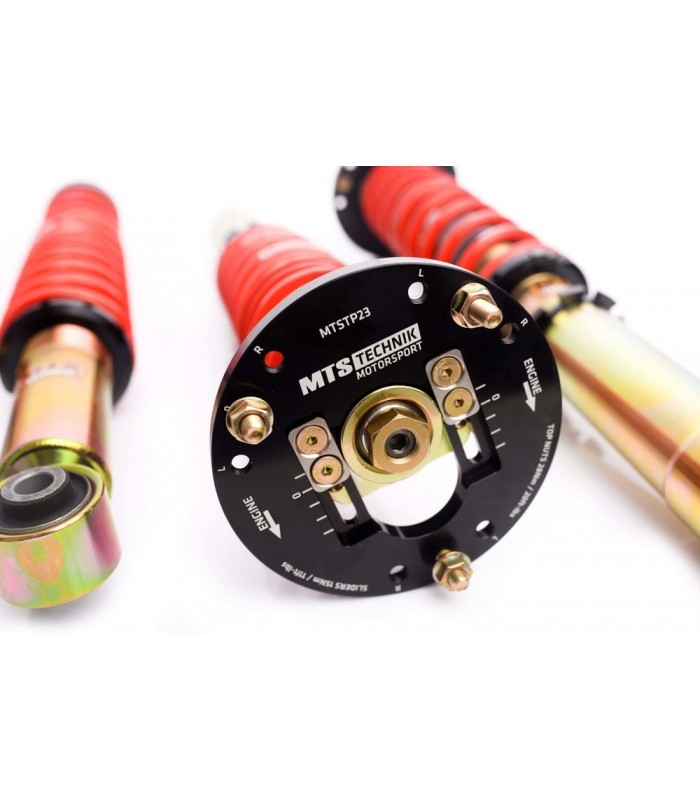

28 - Set includes 2x upper "camber plates" on the front axle.
29 - The installation requires the use of OE front struts - they should be cut and welded as described in the attached manual.
32 - In some cases additional OE-parts for the installation of the suspension components are required. Those are not included in the set.
33 - Including M-Technik.
65 - Suspension compatible only with a rear top mount with an internal diameter of 78mm - OEM number: 33521117657 or 33521126987. It is possible to mount the suspension to cars equipped with other top mounts, but original parts marked with one of the above numbers will be required.
66 - In the case of cars equipped with Nivo, it will be required to replace the rear top mounts with OEM: 33521117657 or 33521126987.
