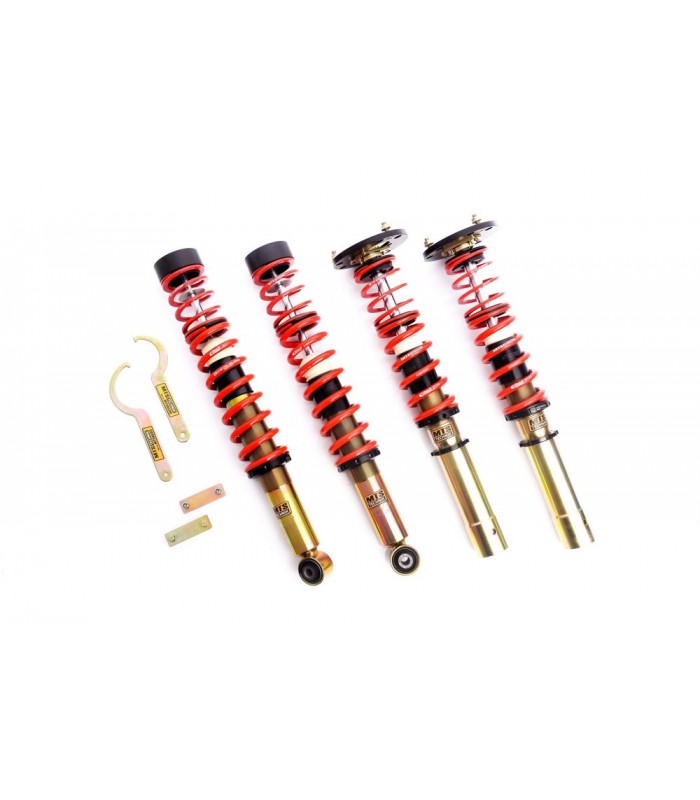

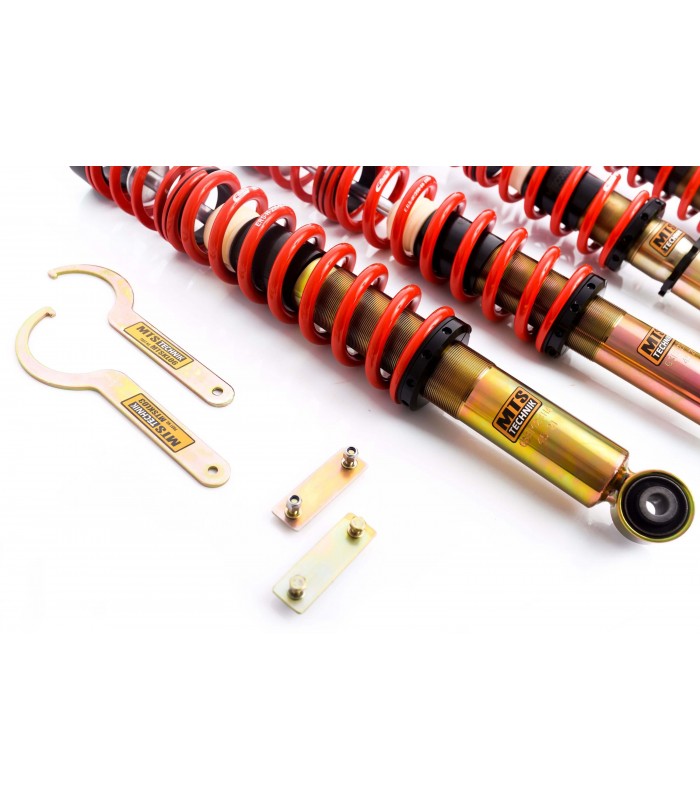

Coilover Kit MTS Technik Stance BMW 7 (E23) 05/77 - 08/81

Many years of experience with coilover suspensions was acquired not only by theory but also by practice. MTS Technik sets are designed by people who use them. The result is a culture of permanent, larger or smaller improvements that are always implemented with the user's needs in mind.

More details

Reduced price!
MTSGWBM58-S
New product
Limited time offer:

849,15 €

999,00 €

-15%

Delivery time: 10-15d.

- +

Data sheet
Make BMW
Model 7 (E23)
Type E23
Year 05/77 - 08/81
Engine 732 i
TÜV no
Max. axle load FA -1040 kg
Max. axle load RA -1150 kg
Lowering FA 35 - 95 mm
Lowering RA 20 - 110 mm
Series Stance
More info


Product Notes:

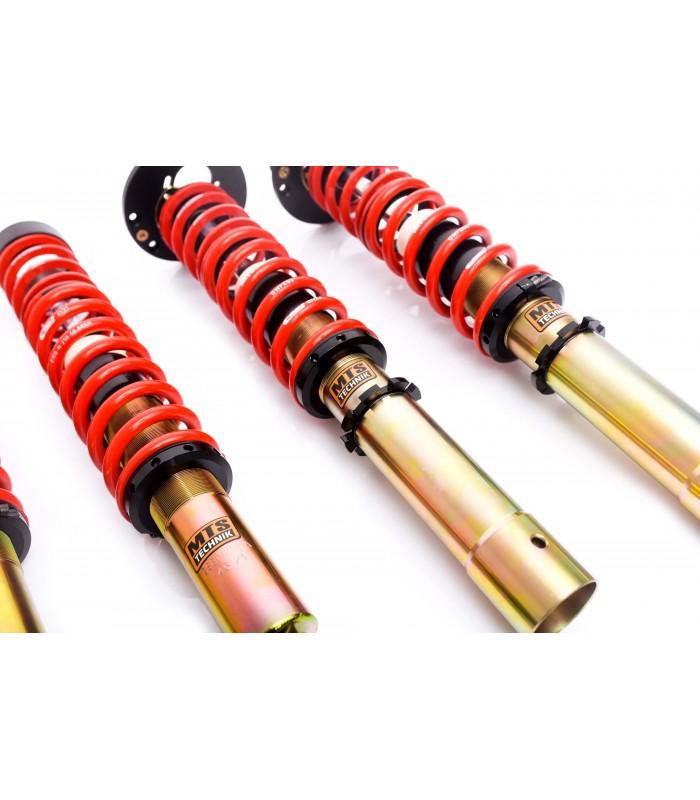

2 - Front and rear axle height adjustable (threaded shock absorber housing).
21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
26 - Independent height adjustment at the lower brackets on the front dampers.

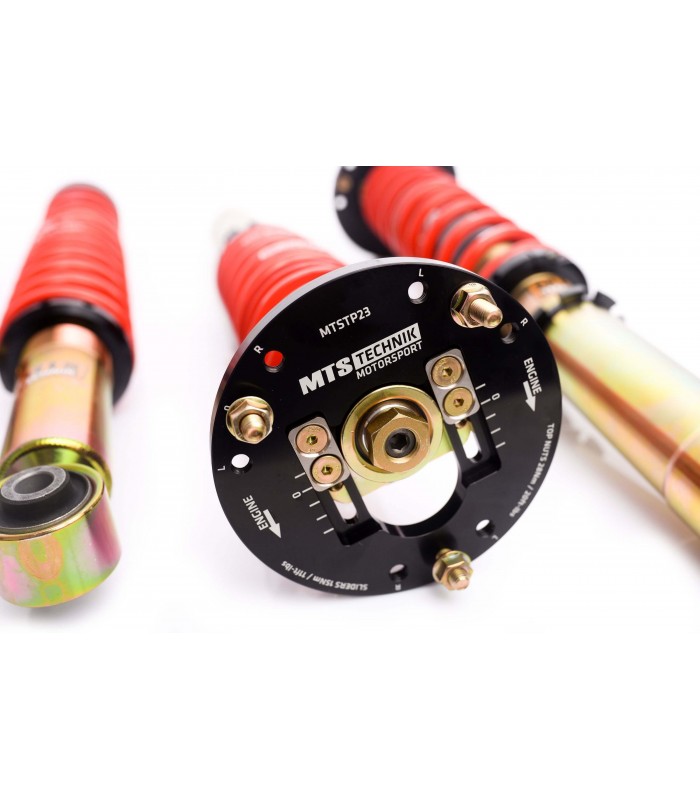

28 - Set includes 2x upper "camber plates" on the front axle.
29 - The installation requires the use of OE front struts - they should be cut and welded as described in the attached manual.
32 - In some cases additional OE-parts for the installation of the suspension components are required. Those are not included in the set.
33 - Including M-Technik.
66 - In the case of cars equipped with Nivo, it will be required to replace the rear top mounts with OEM: 33521117657 or 33521126987.
67 - Suspension compatible only with a rear top mount with an inner diameter of 83mm - OEM number: 33521117997.
