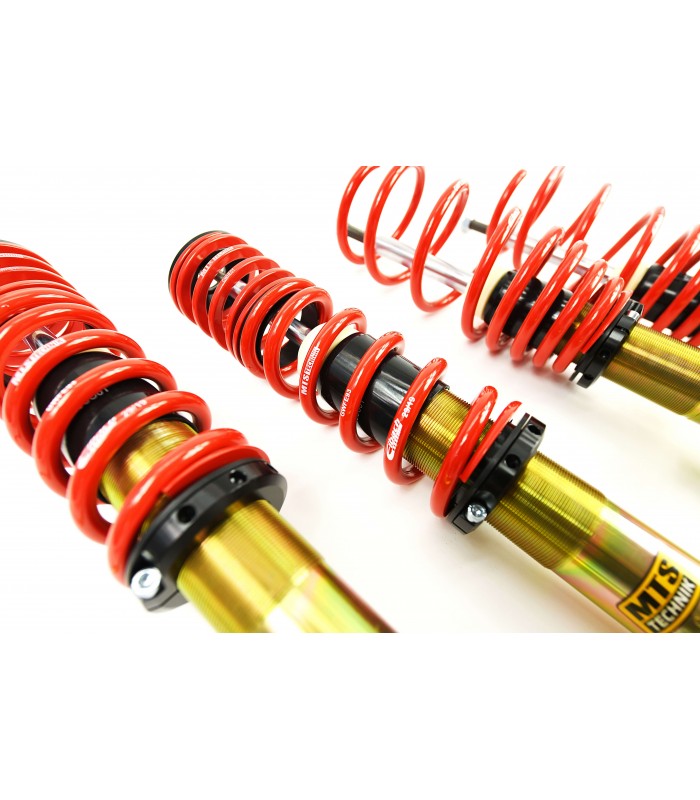

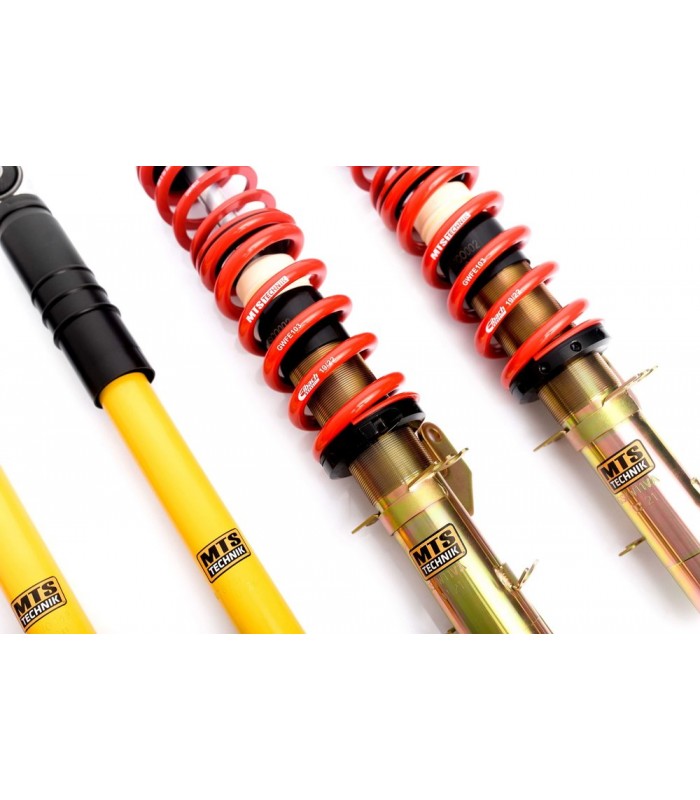

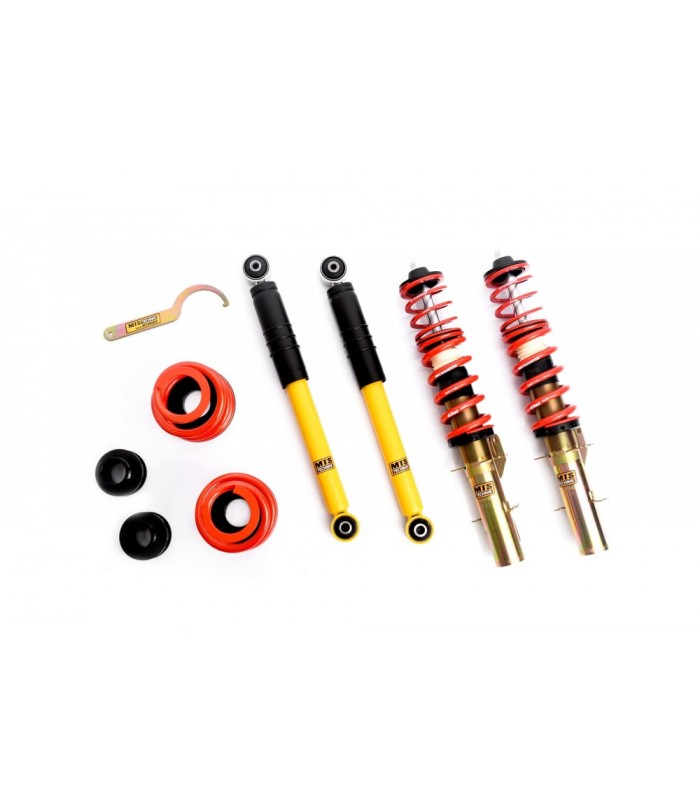

Coilover Kit MTS Technik Stance Volkswagen NEW BEETLE (9C1/1C1) 01/98 - 12/13

Many years of experience with coilover suspensions was acquired not only by theory but also by practice. MTS Technik sets are designed by people who use them. The result is a culture of permanent, larger or smaller improvements that are always implemented with the user's needs in mind.

More details

MTSGWVW11-S

New product

599,00 €

Delivery time: 10-15d.

- +

Data sheet

Make	Volkswagen
Model	NEW BEETLE (9C1/1C1)
Type	1C1
Year	01/98 - 12/13
Engine	3.2 RSI 4motion (1C9)
TÜV	yes
Max. axle load FA	-1110 kg
Max. axle load RA	-1080 kg
Lowering FA	25 - 50 mm
Lowering RA	25 - 50 mm
Series	Stance

More info

Product Notes:
3 - Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
5 - Stabilizer bars may need to be changed with longer ones if lowering more than 40mm.
6 - If the right drive shaft diameter of more than 42 mm, the maximum lowering mentioned in the catalogue is reduced by 15 mm.
21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
35 - Rear thread adjustment block is mounted on the top.
61 - Only for 4x4 models.
