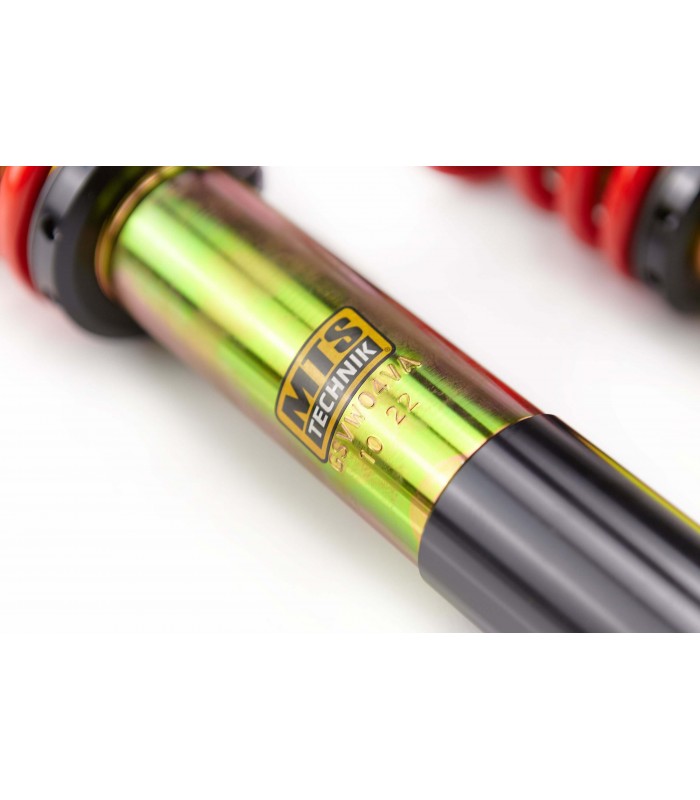

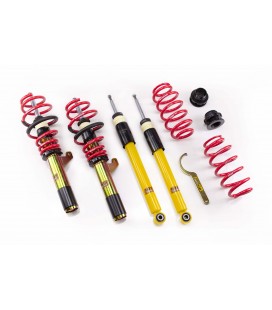

Seat Leon II (1P1) 2005-2013 MTS Coilovers MTSGWVW31 Street

MTSGWVW31

New product

549,00 €

Delivery time: 10-15d.

- +

Data sheet

Make	Seat
Model	Leon II (1P1)
Type	1P1
Year	2005-2013
Engine	1.2TSI / 1.4TSI / 1.6 / 1.6 LPG / 1.8TSI / 2.0FSI / 2.0TFSI / 2.0 Cupra R / 1.6TDI / 1.9TDI / 2.0TDI
TÜV	yes
Max. axle load FA	1036 - 1170 kg
Max. axle load RA	-1150 kg
Lowering FA	30 - 50 mm
Lowering RA	35 - 60 mm
Series	Street

More info

Product Notes:
3 - Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
25 - In some cases it might be necessary to dismount the rear adjustment to achieve the maximum lowering.
35 - Rear thread adjustment block is mounted on the top.
